Introduction

Reverse Engineering in Software

Code languages

• High level (similar to English, readable) vs low level language (computer understands, human generally doesn't)
  • Python (high)
  • ASM (low)
• Ex: C, C++, Java, Python (relatively high) --> compile --> binary (low level)
• Note: not all use compilation, some use interpreters

Example of c code:

int main() {
    int variable = 1;
    return 0;
}

Program binaries are just a bunch of gibberish and not readable. Ex:

Assembly

• A low level programming language
  • It provides a way for humans to read machine code
  • Direct hardware control - asm is almost 1 to 1 with machine code instructions
    • Gives direct control over the processor, memory, and hardware components
  • Architecture specific - x86, arm, mips, etc
    • Each has it's own instruction sets, registers, etc
  • Source code: malware authors don't provide source code, so analysts must work with binaries.
• Misconceptions
  • Machine code is not faster or lower-level than asm
    • 2 representations of the same thing
    • Machine code
      • Bits, cpu instruction list, appears as hex
    • ASM
      • Text representation of bits, human-readable instruction names, ex: MOV, XCHG
• ASM --> machine code --> ASM
  • OPcodes
    • each asm command = unique number
    • object code = sequence of opcodes + op numbers
    • CPU cycle = read --> decode --> execute
  • translated with assembler (asm to binary) and disassembler (bin to asm)

Compilers

• high level languages to machine code
  • Translation process:
    • Input source code files (c, c++)
    • Use compiler (gcc, clang)
    • Output machine code file executable by cpu
• Modern compiler optimizations
  • Minimize code size, improve execution performance, higher efficiency
  • Impact of reverse engineering:
    • Straightforward instructions --> mathematically equivalent but obscure instructions
    • Optimized code becomes difficult to read
    • Original program logic gets buried under optimizations

Disassemblers

• Inputs binary file
• Output asm code
• Consider architecture
  • some support multiple
• entire program or specific parts
• types of disassemblers
  • standalone disassemblers - dedicated tools with features
  • built-in disassemblers - embedded in debuggers

Decompilers

• Binary back to high level code (ex: binary --> c)
  • ex:
  • Input binary
  • output example.c
• Limitations
  • original source code recovery usually not possible
• Decompiler vs Disassembler
  • Dissassembler --> asm
  • Decompiler --> high level code (c, cpp, etc)

Registers

• CPU has a few major parts
  • ALU
  • CU (control unit)
  • many registers
    • registers are much faster than ram
• Advantages
  • fastest data access method
  • central to asm operations
• Limitations
  • very few available
  • short-term only
  • manual management
• Programmers must manually
  • load data from ram --> registers
  • store data from registers --> ram
  • manage register space

Assembly

• Only about 14 asm instructions account for 90% of code

Data types

• Binary, decimal, hex, etc
• In C, int, short, long, float, etc
• Negative numbers
  • idk man ill teach myself
  • nvm stackoverflow taught me goated website

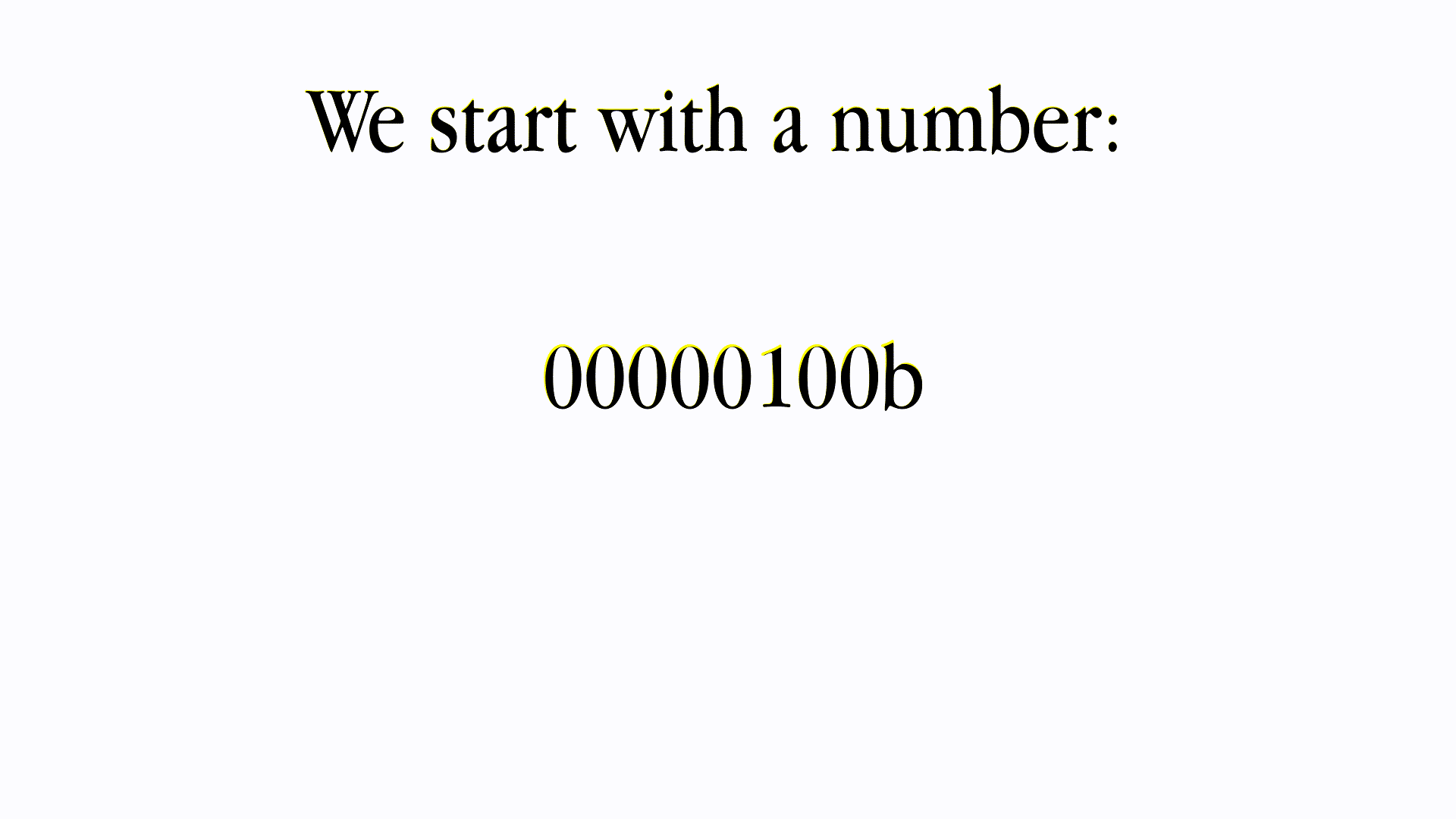

I made a gif explaining it found here.

Architectures

• Intel uses CICC - Complex Instruction Set computer
  • Many special purpose intstructions (likely wont ever see)
  • Variable-length instructions, 1-16 bytes long
• Other major architectures
  • RISC - Reduced instruction set compiler
  • typically more registers, less and fixed-sized instructions

Endian

• Little Endian
  • little end first
  • intel is little endian
• Big Endian
  • big end first
  • network traffic is big endian

Registers

• 8 general purpose registers + instruction pointer (points at next instruction to execute)
• x86-32 registers are 32 bits long
• x86-64 registers are 64 bits long

Register Conventions (intel)

• registers
  • EAX - stores function return values
  • EBX - base pointer to data section
  • ECX - counter for string and loop operations
  • EDX - i/o pointer
  • ESI - Source pointer for string operations
  • EDI - Destination pointer for string operations
  • ESP - Stack pointer
  • EBP - Stack frame base pointer
  • EIP - Pointer to next instruction to execute (“instruction pointer”)
• caller-save registers (eax, edx, ecx)
  • if something in registers needs to be stored, the caller is in charge of saving the value before calling a subroutine and restoring the values after the call returns
  • caller-save registers are likely to be modified
• callee-save registers (ebp, ebx, esi, edi)
  • if callee needs more registers than are saved by the caller, the callee must save them
• EFLAGS
  • register holds many single bit flags
  • zero flag (zf) - set if the result of some instruction is zero
  • sign flag (sf) - set equal to most-significant bit of the result, which is the sign bit of a signed integer (0 = positive, 1 = negative)
• instructions
  • NOP - do nothing
    • used to pad/align bytes or delay time
    • can be used to make exploits more reliable

The Stack

• the stack is a conceptual area of main memory (ram) which is designated by the os for programs
• last-in-first-out (LIFO/FILO) data structure
• by convention the stack grows toward lower memory addresses
• when adding to the stack the "top" of the stack is a lower memory addresses
• ESP points to the top of the stack (the lowest address in use)
• the stack keeps track of which fucntions were called before the current one. it holds local variables and is used to pass arguments to the next function

note:

• push --> incrememnd stack size
  • decrement ESP
• pop --> shrink stack size
  • increment esp

Calling convetnions

• how code calls a subroutine is compiler-dependent and configurable
• example using cdecl and stdcall
  • cdecl (c declaration) - most common calling convention
    • function parameters pushed onto stack right to left
    • saves old stack frame poitner and sets up a new stack frame
    • EAX or EDX:EAX returns the result for primitive data types
    • caller must clean up the stack
  • stdcall
    • same as cdecl, except the callee must clean up the stack - not the caller
